Mars Rover
EDL Optimization

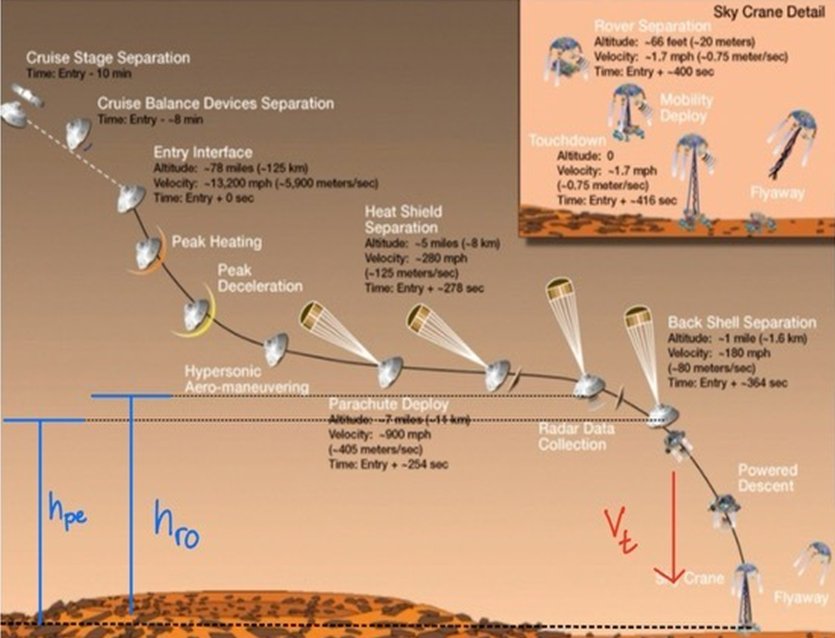

The EDL phase of a Mars rover mission begins after atmospheric entry and ends at rover touchdown. The rover must transition from hypersonic entry through parachute deceleration and into rocket-powered descent — all while Mars's thin atmosphere, reduced gravity, and variable wind conditions constrain the available options. Fuel is finite and irreplaceable; any excess consumed during descent is weight that could have served the mission.

This project formulated a constrained nonlinear optimization problem to determine the set of descent control parameters that minimizes total propellant consumption while guaranteeing a structurally survivable touchdown. The simulation framework modeled daily-variable atmospheric conditions, enabling the optimizer to be run on any specific landing day with real atmospheric inputs.

The optimization vector consists of five parameters that control how and when the descent system transitions between phases and how the controller responds during the final powered descent:

h_pe — parachute ejection altitude (300–1500 m). Controls when the rover transitions from aerodynamic to rocket deceleration. Too low and there is insufficient altitude for the rockets to stabilize the descent; too high and the rocket must burn longer.

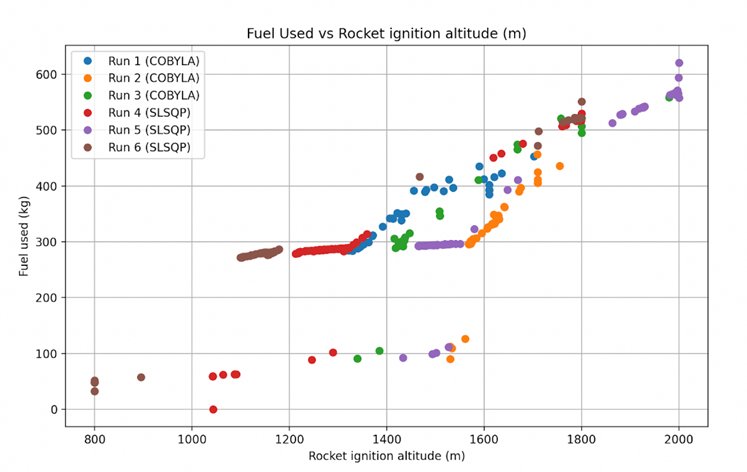

h_ro — rocket ignition altitude (800–2000 m). Must occur above h_pe by constraint. Higher ignition altitudes mean longer burn times and greater fuel consumption; the optimizer consistently found that igniting close to the parachute ejection altitude minimized fuel use while maintaining stability.

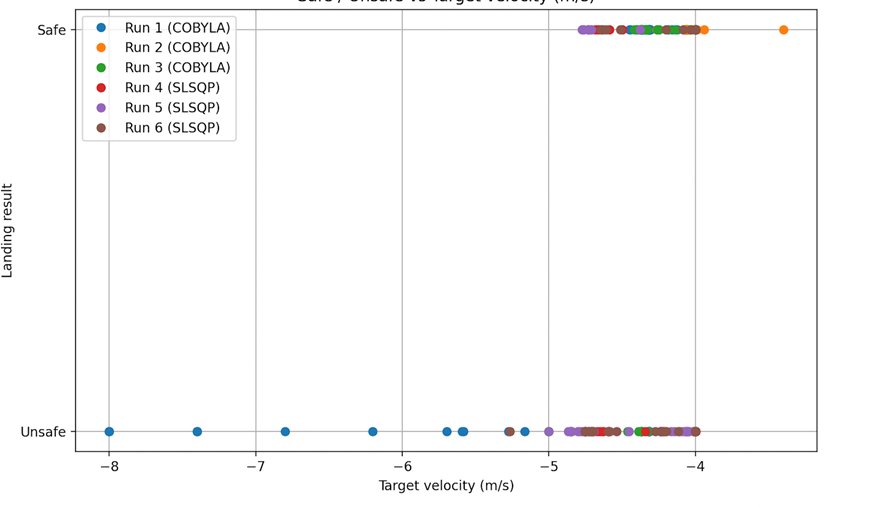

V_t — target vertical descent velocity (−8 to −4 m/s). The setpoint for the speed controller during rocket descent. This proved to be the most sensitive design variable — small deviations near −4 m/s determine whether a landing is classified as safe or unsafe.

K_p — proportional gain (300–5000). Controls the aggressiveness of velocity corrections during powered descent. Larger values provide faster response but can cause oscillation.

K_d — derivative gain (1–100). Safe optimized solutions consistently moved K_d toward lower values, suggesting that lower derivative gains produce smoother control responses and reduce aggressive corrective maneuvers near touchdown.

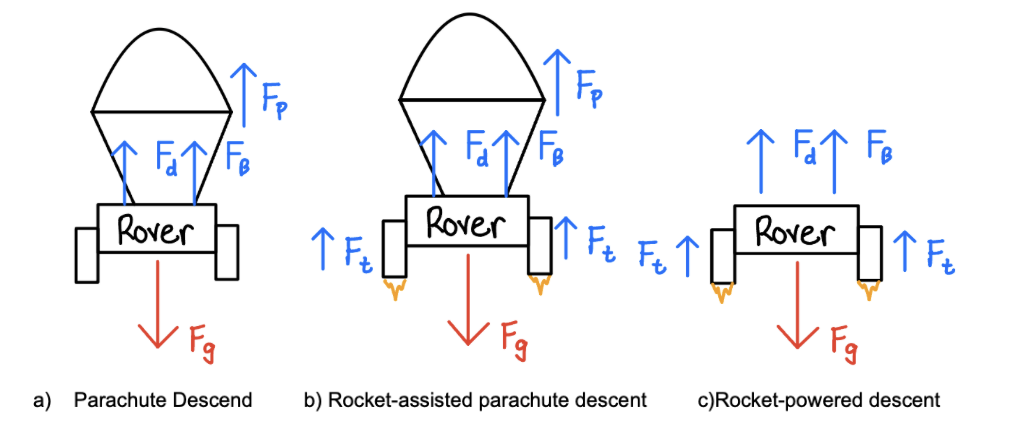

The simulation models each phase of the descent with its own equations of motion. During parachute-only descent, drag and buoyancy decelerate the vehicle. Once rockets ignite alongside the parachute, thrust is added. After parachute ejection, the rocket system alone — governed by the PID speed controller with gains K_p and K_d — carries the rover to sky-crane deployment altitude. Wind speed and atmospheric density scaling (ρ_scale) are incorporated as daily-variable inputs.

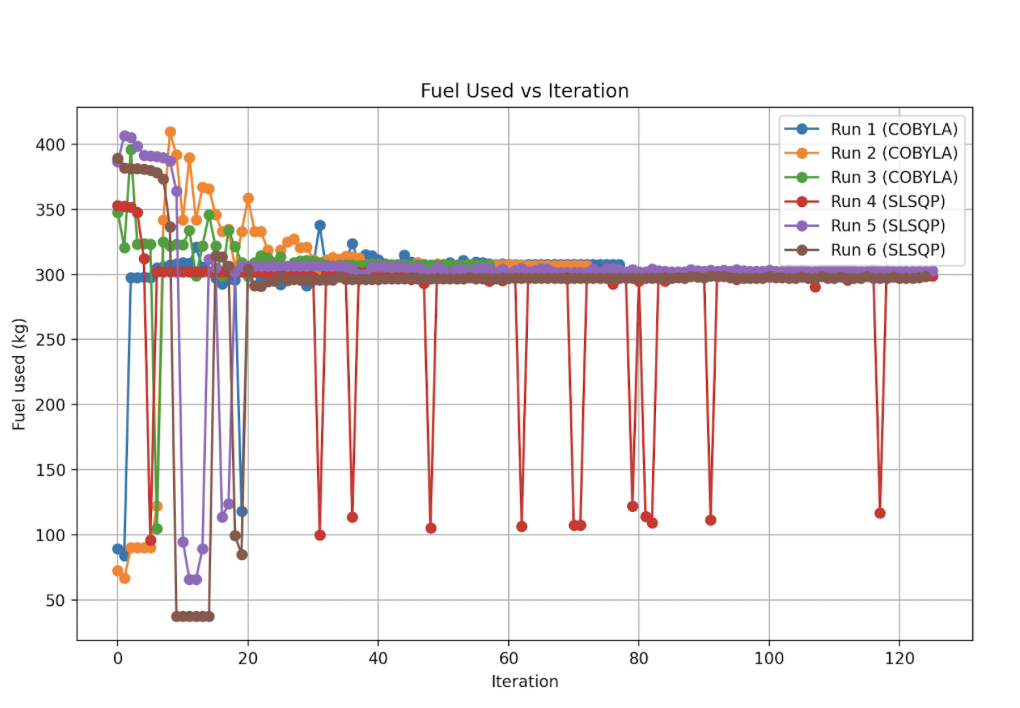

Six optimization runs were conducted — three with COBYLA and three with SLSQP — each starting from a different initial design vector. Under normal atmospheric conditions (ρ_scale = 1, wind = 0 m/s), fuel consumption ranged from 280.48 to 296.83 kg, with SLSQP's best run (Run 6) achieving the lowest value. When modified conditions were introduced (ρ_scale = 0.9, wind = −5 m/s), all runs consumed more fuel — ranging from 298.59 to 307.64 kg.

The increased fuel cost under modified conditions has two causes. A 10% reduction in atmospheric density reduces aerodynamic drag, so the propulsion system must perform more active braking. The non-zero wind speed introduces an external disturbance the controller must continuously correct for. Together these effects add approximately 15–20 kg of fuel across every run — a direct illustration of why atmospheric uncertainty matters in mission design.

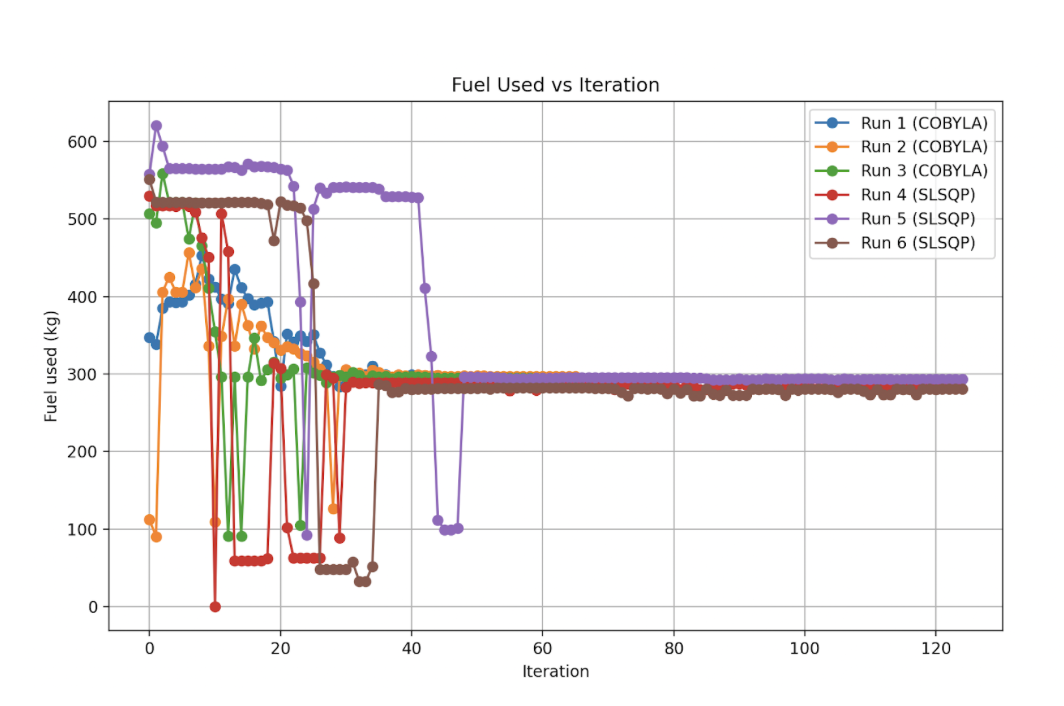

Both solvers converged to feasible solutions that satisfied all five constraints. SLSQP enforced constraints more tightly, while COBYLA explored the design space more broadly. The convergence plots show both solvers finding comparable solutions from very different starting points, which builds confidence that the results reflect genuine optima rather than numerical artifacts.
