Jack-in-a-Box
Simulation

The jack-in-a-box system involves two rigid bodies, multiple simultaneous contact constraints, impacts with velocity jumps, external forcing, and orientation tracking across several reference frames. The goal was to formulate the equations of motion correctly using Lagrangian mechanics, implement a numerically stable integration scheme that handles impacts as discrete events, and animate the result in real time.

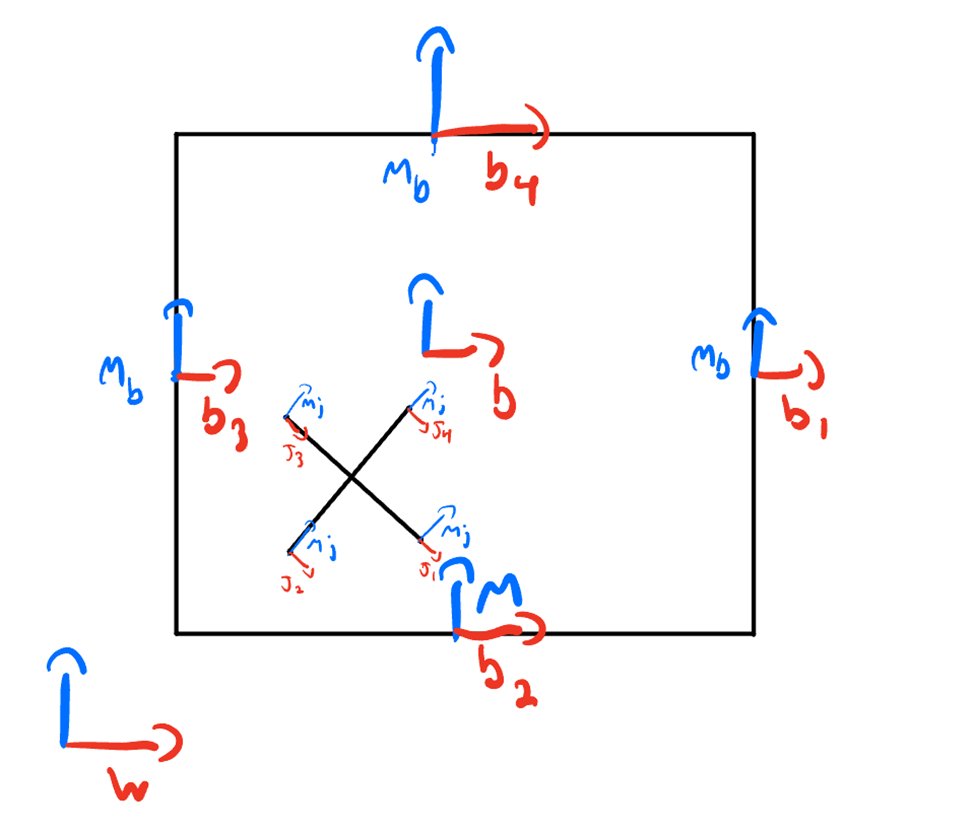

The system has six generalized coordinates: x_b(t), y_b(t), θ_b(t) for the box, and x_j(t), y_j(t), θ_j(t) for the jack, where each θ is a rotation about the world-frame z-axis. World-to-box (g_wb) and world-to-jack (g_wj) homogeneous transforms were defined. Local offsets b_i define the four box walls; j_i define the four jack corner points. The signed distance between each jack corner and each box wall defines the contact condition φ - contact occurs when φ crosses zero.

External forcing drives the simulation: horizontal force F_x = 300·sin(2πt/3), torque τ = 45000·sin(2πt/3), and a constant lift force counteracting gravity. This creates the "shaking" motion of the box while the jack bounces inside under gravity.

Velocity vectors V_b and V_j were extracted from the time derivatives of the transforms using an unhat function. Inertia matrices I_b = diag(m_b, m_b, m_b, 0, 0, J_b) and I_j = diag(m_j, m_j, m_j, 0, 0, J_j) gave the kinetic energy T = ½V_bᵀI_bV_b + ½V_jᵀI_jV_j. Potential energy V = g(m_by_b + m_jy_j). The Euler-Lagrange equations d/dt(∂L/∂q̇) − ∂L/∂q = F were solved symbolically in SymPy for the six accelerations, then lambdified for numerical integration.

For impact handling, the constraint Jacobian ∂φ/∂q̇ was computed symbolically. The Hamiltonian H was evaluated before and after impact. Post-impact velocities were found by solving the impact equations - the system of equations formed by the difference in pre- and post-impact Hamiltonian values and Lagrange multiplier λ - choosing the solution where λ is nonzero. This ensures energy conservation is enforced correctly at each collision event.

The simulate_impact function runs a RK4 integration loop, checking φ at every step. When any entry crosses zero, the velocity is reset via impact_update before integration continues - capturing both continuous motion and discrete collision events.

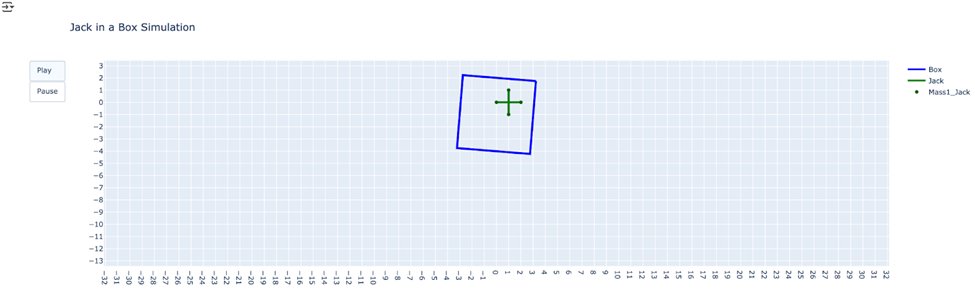

The animation correctly shows the box rotating clockwise in response to the applied torque - simulating a person shaking the box. The jack initially drops under gravity. When it contacts the bottom wall, the impact equations correctly produce a velocity reversal with angular acceleration - the jack begins to tumble. The box slowly translates downward as the constant lift force representing a person holding it gradually becomes insufficient against gravity over time.
